Fiber Laser Cutting Machines

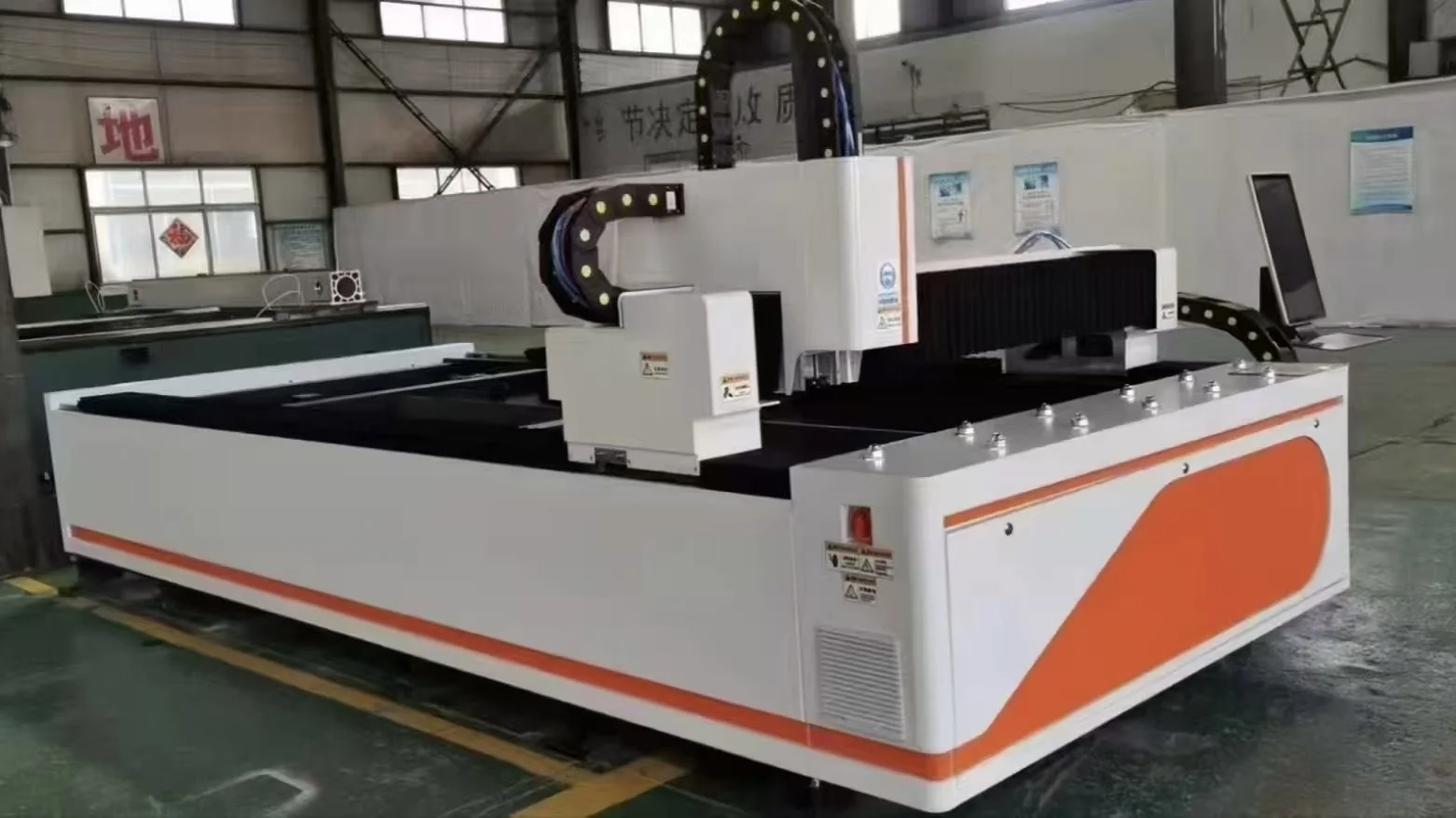

Sheet Fiber Laser Cutting Machine
The sheet fiber laser cutting machine supports efficient processing of carbon steel, stainless steel, and other metal sheets. Standard working formats and high-power long-bed configurations are available for workshops and industrial production lines.
Models and Series
3015–60253–6 kW Standard12–30 kW High Power
Specifications
| Laser Type | Fiber laser |
|---|---|
| Reference Model | 3000 × 1500 mm — 6000 W |
| Cutting Material | Carbon steel, stainless steel, and other metals |
| Power Supply | 380 V / 50 Hz |
| MOQ | 1 set |
| Warranty | 1 year |
Available Standard Configurations
| Working Format | Laser Power Options |
|---|---|
| 3015 | 3000 W / 6000 W |
| 4015 | 3000 W / 6000 W |
| 4020 | 3000 W / 6000 W |
| 6015 | 3000 W / 6000 W |
| 6020 | 3000 W / 6000 W |
| 6025 | 3000 W / 6000 W |
Reference configuration. Final specifications are subject to confirmed requirements and quotation.
Available High-Power Configurations
| Machine Format | Working Size | Laser Power Options |
|---|---|---|
| Rail-bed 13035 | 13 m × 3.5 m | 12 kW / 20 kW / 30 kW |
| Rail-bed 26035 | 26 m × 3.5 m | 12 kW / 20 kW / 30 kW |
| Single-bed 13026 | 13 m × 2.6 m | 12 kW / 20 kW / 30 kW |
Reference configuration. Final specifications are subject to confirmed requirements and quotation.
3015 — 6000 W Reference Specifications
| Parameter | Reference Value |
|---|---|
| Equipment Model | 3000 × 1500 mm — 6000 W |
| Working Area | ≥3000 mm × ≥1500 mm |
| Maximum X-axis Travel | ≥3050 mm |
| Maximum Y-axis Travel | ≥1550 mm |
| Maximum Z-axis Travel | ≥150 mm |
| X/Y Positioning Accuracy | ≤0.03 mm/m |
| X/Y Repeat Positioning Accuracy | ≤0.025 mm/m |
| Maximum X/Y Positioning Speed | 80 m/min |
| Maximum X/Y Linked Speed | ≥80 m/min |
| Maximum X/Y Acceleration | ≥1.2 G |
| Rated Voltage | 380 V |
| Frequency | 50 Hz |
| Electrical Protection | IP54 |
| Maximum Worktable Load | ≥1500 kg |
| Reference Machine Dimensions | 4600 × 2300 × 1800 mm |
Reference configuration. Final specifications are subject to confirmed requirements and quotation.
Product Advantages
- Multiple table formats and laser power options
- High positioning accuracy for repeatable sheet processing
- Clean cutting edges with reduced secondary processing
- Standard and long-bed configurations for different factories
Application Scenarios
- Sheet metal fabrication
- Electrical cabinet production
- Automotive and machinery components
- Construction and decorative metalwork
Customizable Options
- Working format and laser power

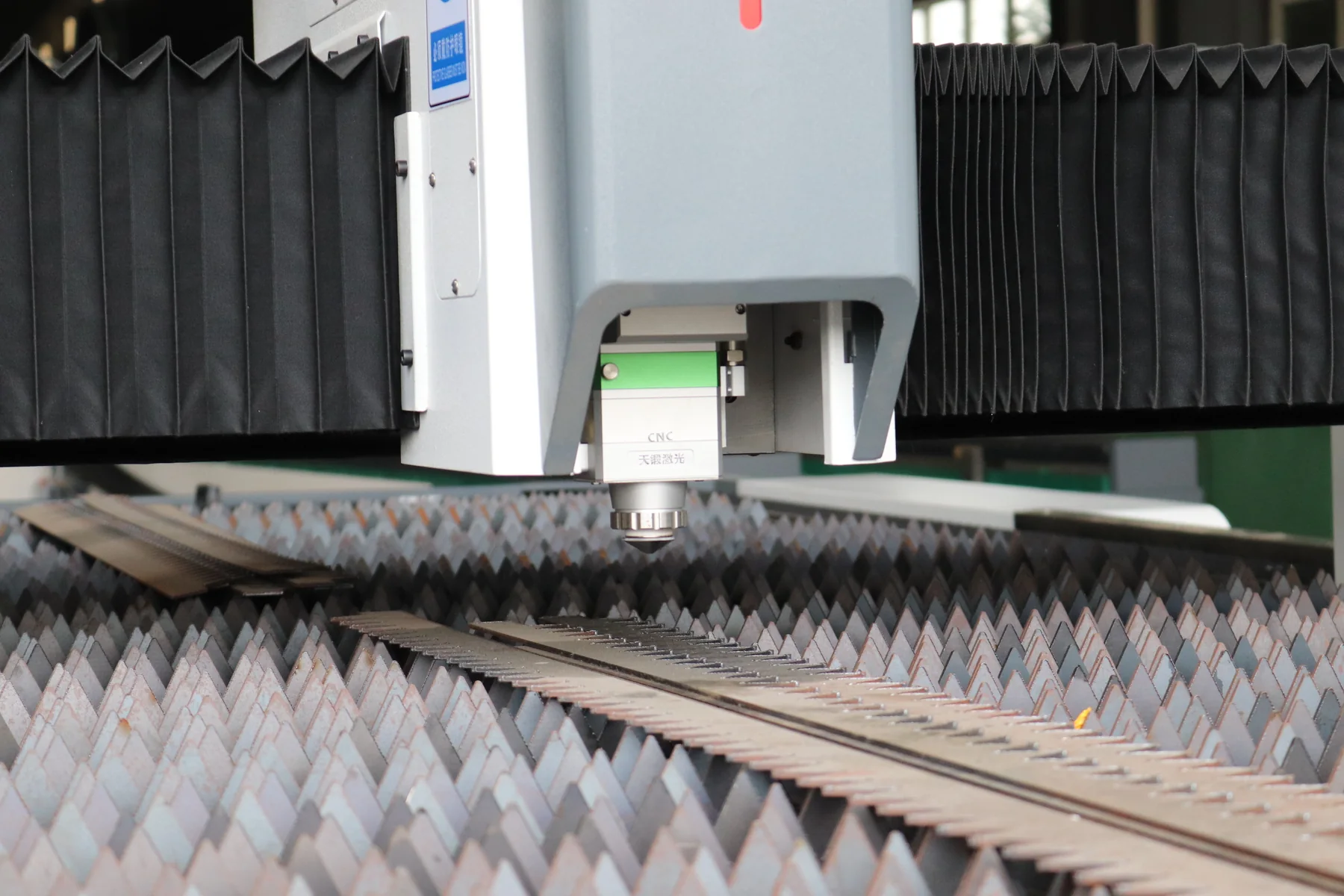

- Laser source and cutting head
- Open, enclosed, or exchange-table structure
- Loading and unloading system
- Voltage, branding, and interface language
Packaging & Delivery
Packaging
Key optical and electrical components are protected separately, while the machine body is reinforced for export transport.
Delivery
Typical production time is 20–45 days after the final configuration is confirmed.
